Wear-Resistant Hardfaced/Tungsten Carbide Plow Tip 34060850 | Double Life Reversible Point For Horsch Agricultural Cultivator | Farming Tools

Short Description:

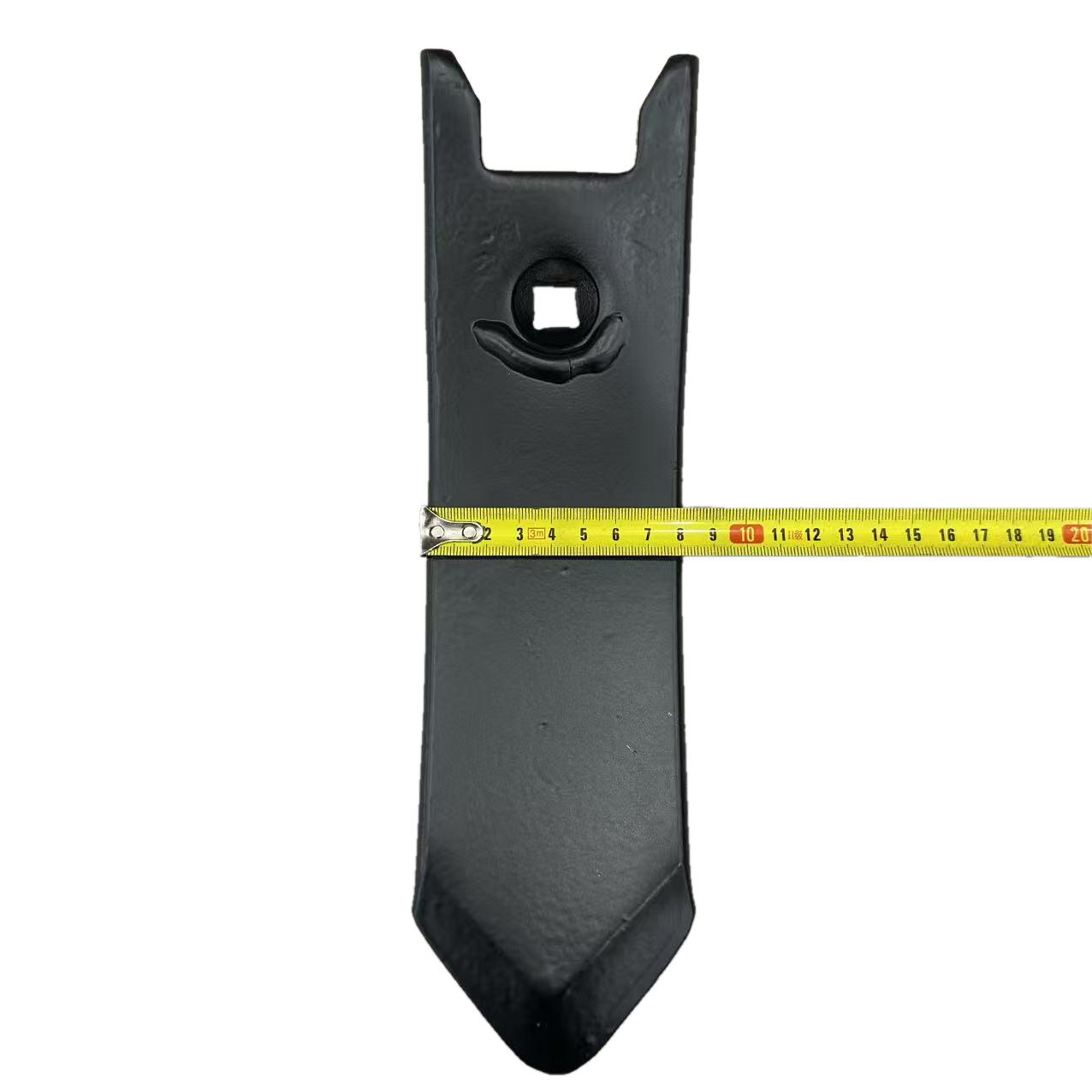

The plowshare tip (part number: 34060850) is a wear-resistant component suitable for agricultural machinery from brands such as Horsch. Its key parameters are approximately 270mm in length, 80mm in working width, and 12mm in thickness, and it features a single-bolt fixing design. This plowshare tip is specifically designed for soil tillage, effectively cutting into the soil and reducing resistance. Some high-end models utilize hardening or tungsten carbide alloy technology, significantly improving wear life and enabling it to withstand harsh conditions such as encountering rocks.

Send email to us

Product Detail

Product Tags

The 34060850 is a universal, wear-resistant plow tip for agricultural machinery, suitable for high-intensity soil work. It is primarily used as an original equipment manufacturer (OEM) replacement part for Horsch's Terrano, Tiger, and other combined tillage machines and Mulch Mix systems. This product features a modular design, offering high adaptability, and is also compatible with similar equipment from brands such as Bednar. It is a critical and easily worn component in soil tillage operations.

Matrix material: High-strength boron steel or 65Mn manganese steel is selected and manufactured through precision forging or heat treatment processes to ensure that the plowshare tip has excellent impact toughness and structural rigidity, and is not easy to break.

Wear-resistant technology: High-end versions feature an HTite® or similar high-hardness tungsten carbide coating deposited on the top and bottom working surfaces. This coating has an average hardness exceeding 600 HV, with carbide hardness reaching up to 2500 HV, forming a robust "armor" protective layer.

Ultra-long lifespan: The application of tungsten carbide coating extends the lifespan of the plow tip by 3 to 5 times compared to ordinary steel parts, significantly reducing the frequency of downtime for replacement in the field and maximizing the operating window.

Reduced fuel consumption: The wear-resistant coating maintains the sharp geometry of the plow tip for a long time, reducing soil friction resistance. A sharp plow tip means reduced tractor traction resistance, thus effectively reducing fuel consumption.

High cost-effectiveness: As a high-quality non-original (OEM) part, the 34060850 offers more competitive procurement costs while maintaining the same mechanical performance as the original equipment manufacturer (OEM), making it an ideal choice for reducing operating costs.
