Wear resistant alloy steel casting plowshare tip high-strength impact resistant field operation tool

Short Description:

The auxiliary component of agricultural machinery, the plow tip, is a vulnerable and wear-resistant part installed below the front edge of the plow body. During operation, it is first cut into the soil to effectively protect the main plow tip and plow wall, and extend the service life of the plow body. It is forged from high-strength boron steel or alloy steel, with sharp and tough cutting edges, excellent soil penetration performance, and wear resistance. Suitable for complex working conditions such as deep plowing and land reclamation in dry fields, it can reduce tillage resistance and improve operational efficiency.

Send email to us

Product Detail

Product Tags

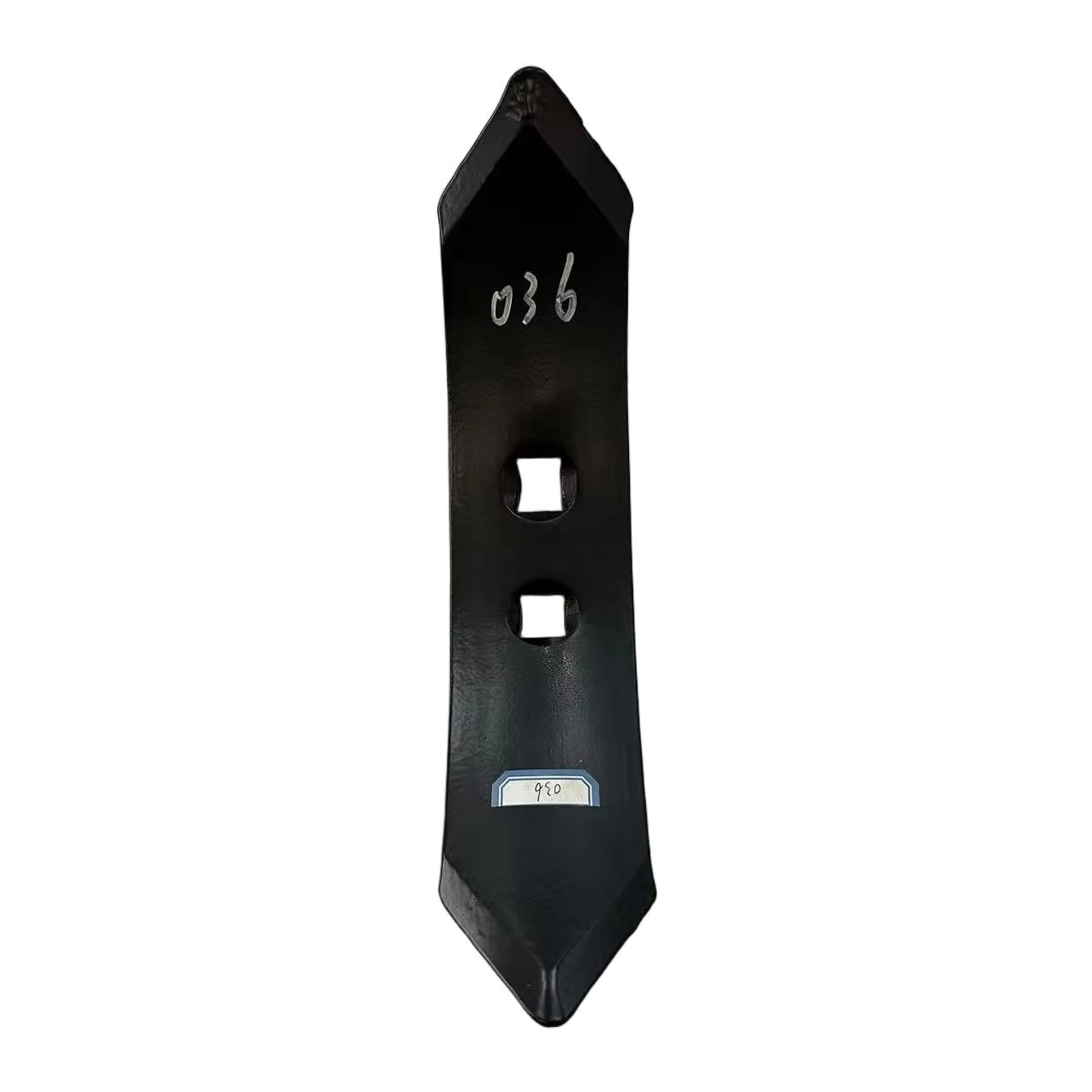

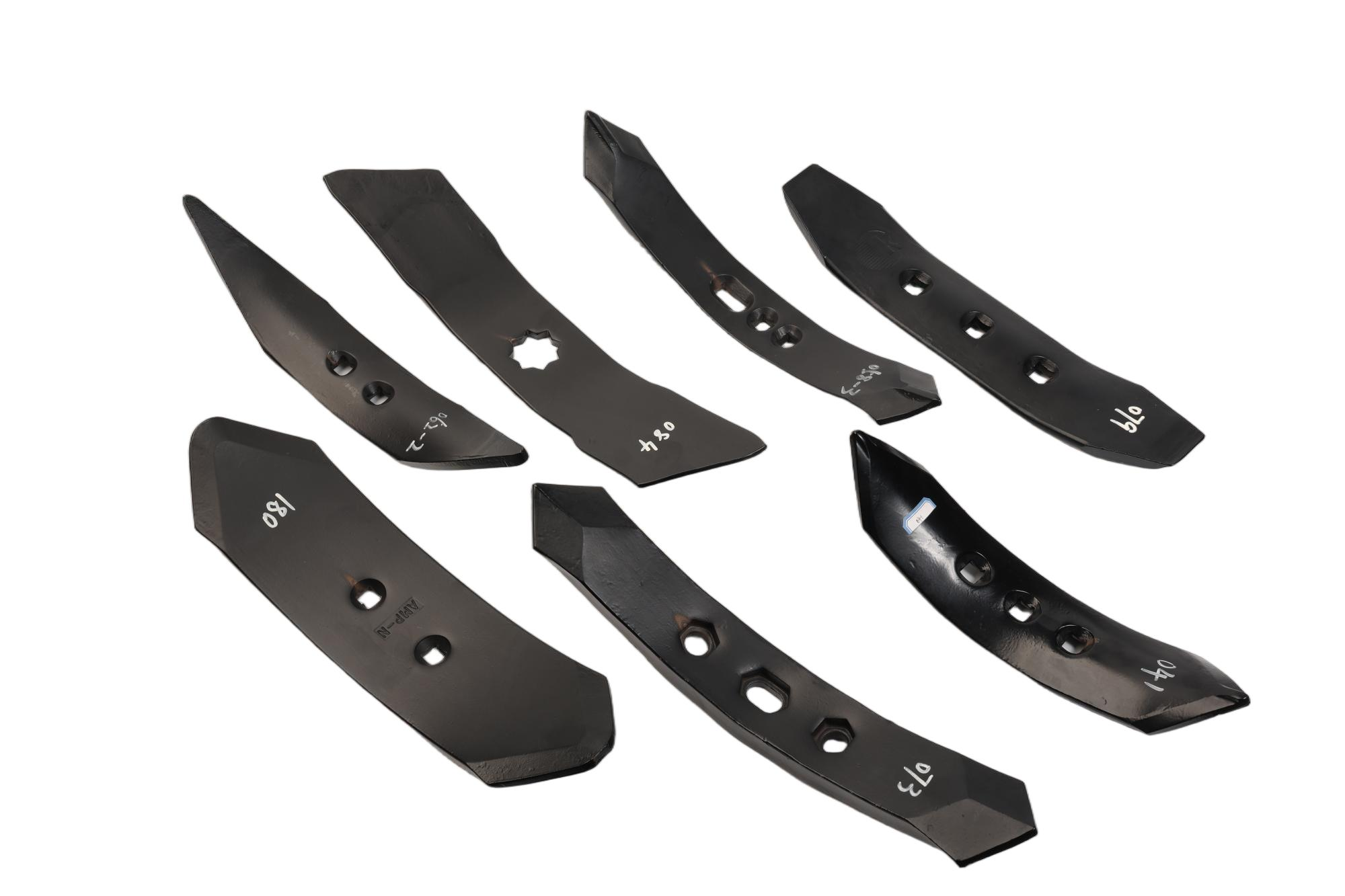

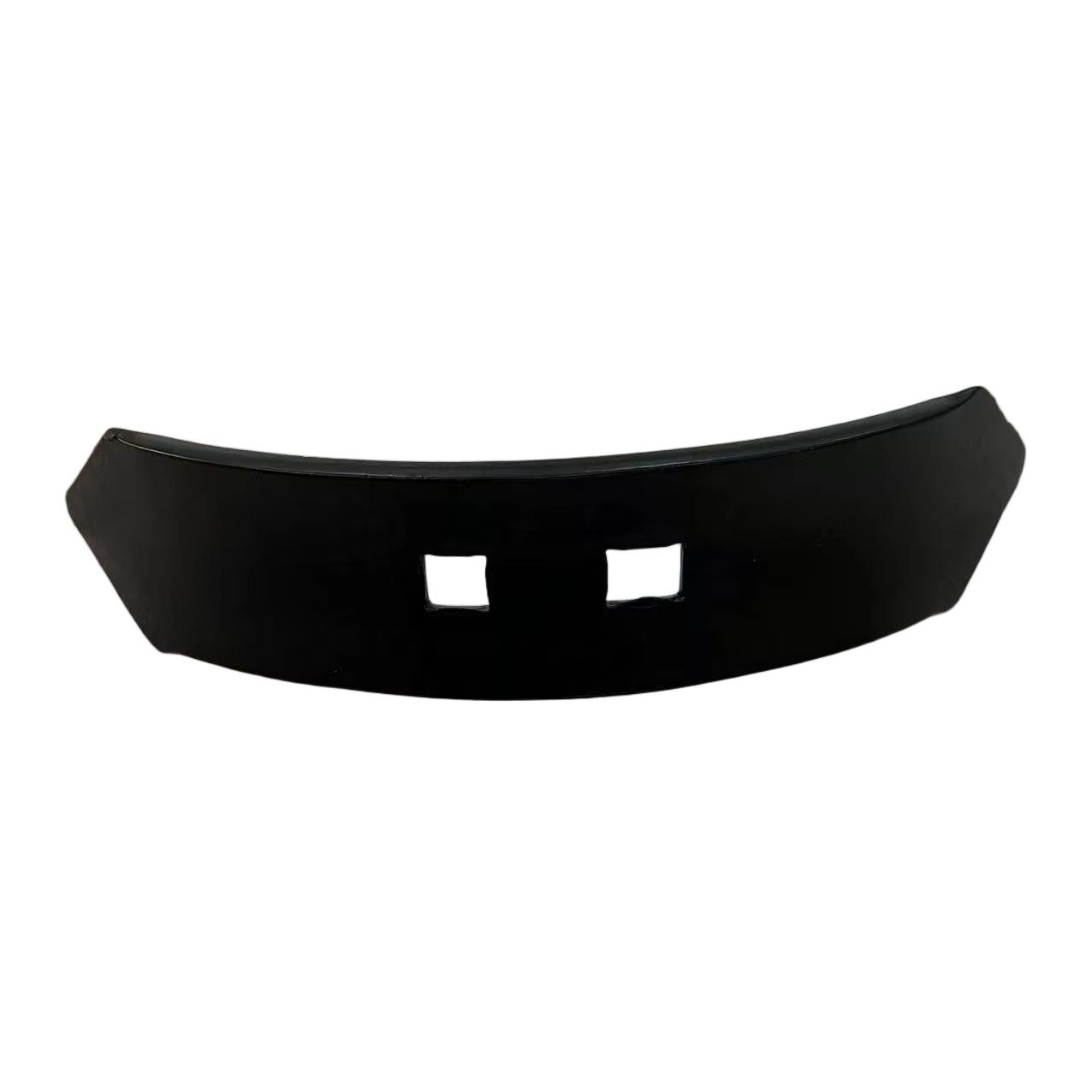

The plow tip, as the most core and rapidly worn out key wear-resistant component in the plow operation, is known as the "teeth" of the plow body assembly. It is installed at the front end of the plow wall, directly in contact with the soil, and bears the responsibility of digging into the soil, lifting the soil, and transmitting huge traction force. Our company's series of plow tips are designed to adapt to various complex terrain conditions, from loose sand to hard compacted clay. They are the "invisible heroes" that improve farming efficiency and reduce fuel consumption.

Core materials and processes:
In order to cope with the severe impact and wear of rocks and crop roots on components during field operations, this product strictly selects high manganese wear-resistant alloy steel (such as Mn13) or boron steel (such as 65Mn) materials.

Heat treatment process: After overall quenching and low-temperature tempering treatment, the surface hardness can reach HRC 45-52, while the core retains good flexibility. This "hard on the outside and tough on the inside" characteristic ensures that the plow tip will not brittle when impacted by hard objects, and has extremely strong wear resistance, greatly extending the replacement cycle.

Precision forging: Using precision forging technology to form, the metal streamline distribution is reasonable, the organizational structure is dense, and the strength consistency of each product is ensured.

Soil penetration performance: The tip of the plow adopts an acute angled triangle or chisel design, which has extremely strong soil breaking ability. Even on dry and hard ground, it can be easily cut in, reducing the tractor's traction resistance and effectively saving fuel consumption by 5% -10%.

Self sharpening effect: During the working process, the plow tip continuously rubs against the soil contact surface, and the unique wear curve keeps it relatively sharp during operation, avoiding increased rear end resistance caused by passivation.

Standardized interface: The product is strictly produced according to ISO or industry standard dimensions, with precise installation hole positions, perfectly adapted to mainstream brands of grid plows, flip plows, and semi suspended plows on the market, such as Leiken, Beisong, Longfeng and other models, truly achieving instant use without the need for secondary processing.

Application Scenario:
Suitable for deep plowing, deep loosening, and rotary tillage land preparation operations in dry fields. Whether it is the straw returning and burying of corn and wheat stubble fields, or the land leveling before grass planting, wear-resistant plow tips can ensure stable plowing depth and smooth surface, creating good seedbed conditions for subsequent sowing.
