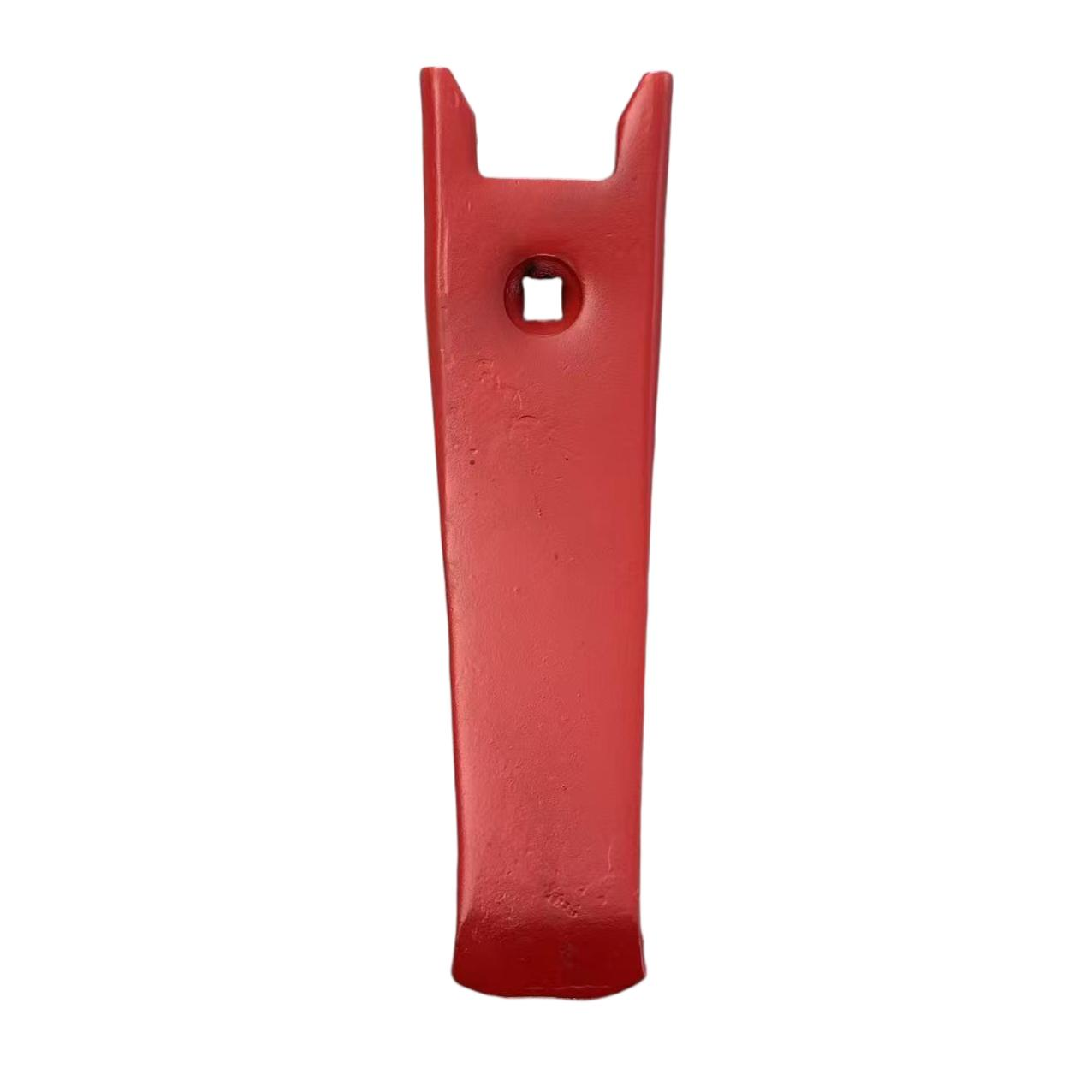

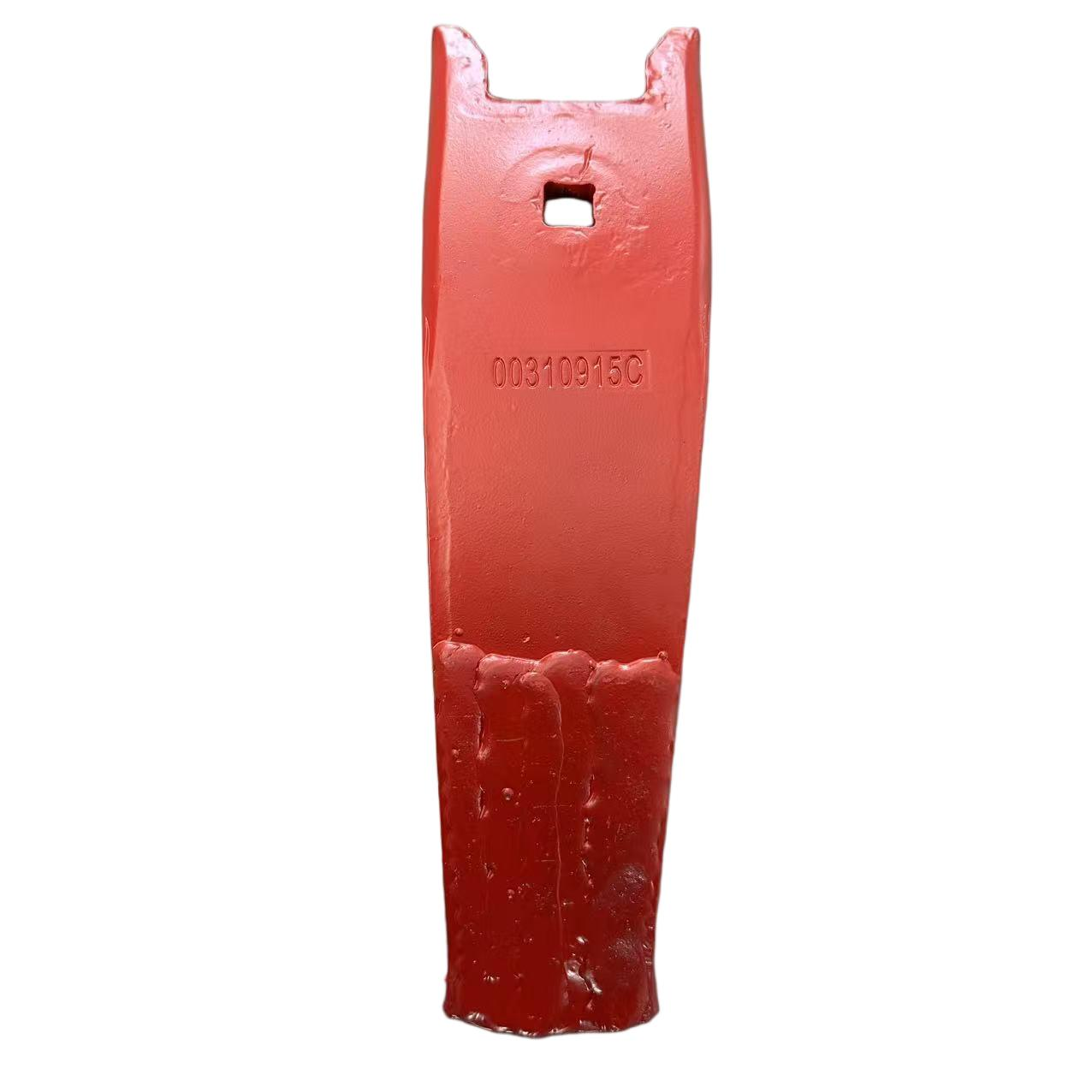

Share point Coated 00310915 (56031 00310915C-15)
This product is a high-strength, wear-resistant share point designed specifically for modern conservation tillage agriculture, belonging to the well-known GRANIT series of agricultural machinery replacement parts. This part is primarily used to install on the plowshare of multi-furrow plows or deep tillage implements, acting as the leading "pioneer" to cut and break up the soil, creating furrow walls and thus reducing drag from subsequent plowshares and lowering overall tillage energy consumption.
Geometry and Working Width: The product is designed with a working width of 80 mm, a standard width for tillage components, ensuring sufficient clod cutting width during movement while maintaining stability in the soil. Its optimized dimensions provide a smooth entry angle, significantly reducing traction resistance.
Material Thickness and Strength: The substrate thickness reaches 15 mm. This thickness is not simply for increased weight, but to withstand the enormous soil pressure and impact loads during deep tillage. The 15 mm thickness provides ample allowance for wear, significantly extending the service life of components in gravelly or compacted soils.
Installation Design: This plow tip uses a single-bolt fixing method (applicable bolt reference number: 1801290812). The single-bolt design simplifies the field replacement process, improves operational efficiency, and ensures centering, allowing the plow tip to remain firmly against the plowshare surface under load, preventing loosening.
Weight: Net weight 2.16 kg. This weight reflects its robust construction, ensuring inertia and stability during operation, and helping to maintain the intended tillage depth.
Initial Abrasion Resistance: The coating (potentially a carbide layer or a special carburized layer) provides extremely high surface hardness in the initial stages of the plow tip's entry into the soil, resisting the microscopic abrasion of sand particles.
Drag Reduction and Soil Removal: A high-quality coating not only increases hardness but also creates a subtle "polishing" effect on the plow tip surface, reducing soil adhesion and the coefficient of friction. Especially in clay soils, this prevents soil clumping and clogging, maintaining the plow tip's self-sharpening properties.
Corrosion resistance: The coating provides a certain degree of isolation against moisture, acidic substances, and chemical residues in the soil, preventing the plow tip substrate from rusting and corroding, thereby protecting the toughness of the internal metal.
