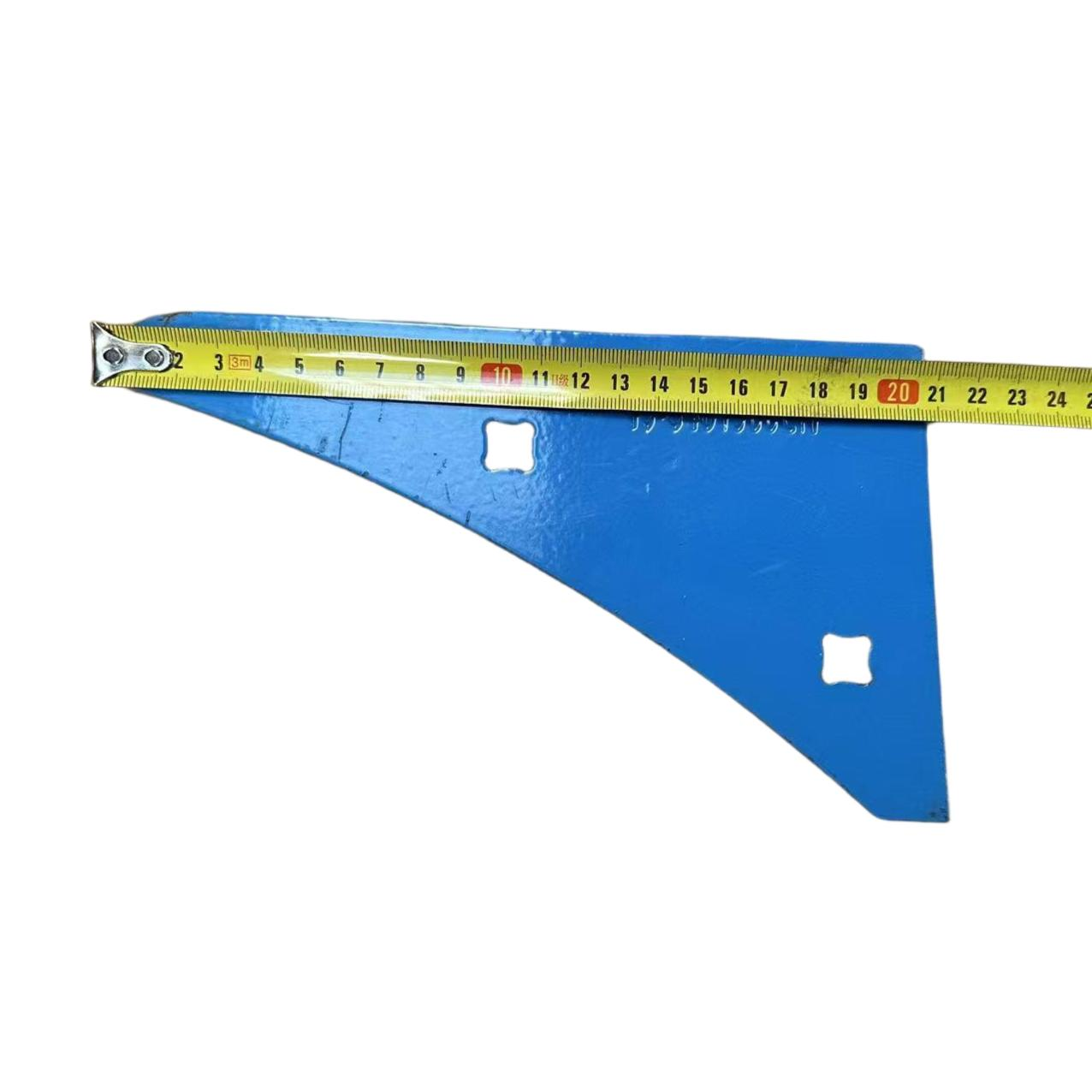

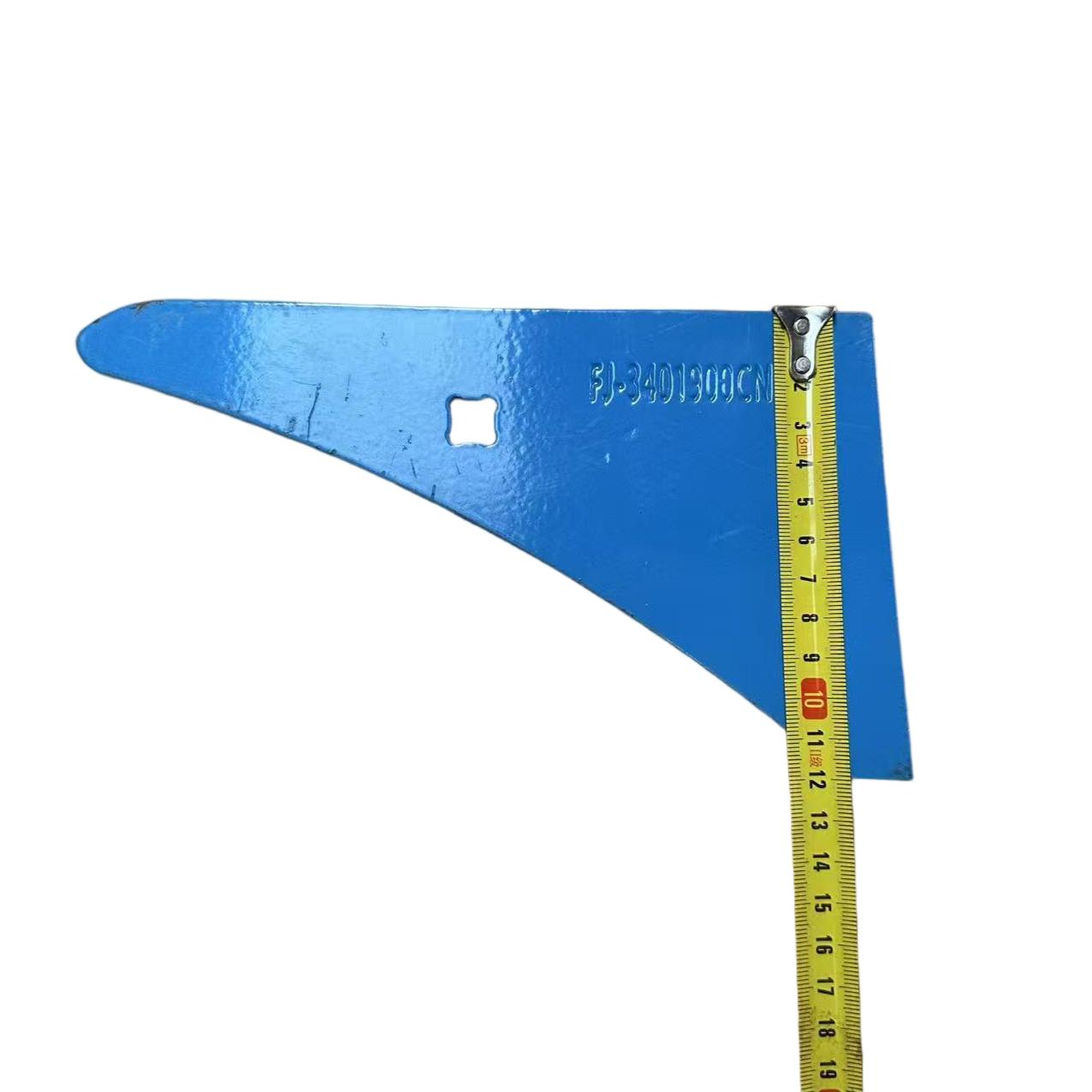

Plow side board-3401900、3401901

Short Description:

The plow sideplate is a core auxiliary component of the moldboard plow, installed on the rear side wall of the plowshare. Its main function is to withstand and balance the lateral pressure generated by the soil during tillage, ensuring stable linear movement of the plow and guaranteeing uniform tillage depth and width. These products are mostly manufactured using wear-resistant alloy steel through a special process, possessing high strength, high wear resistance, and impact resistance. They effectively resist soil abrasion, extend the overall service life of the plow, and are a key component for improving tillage quality and efficiency.

Send email to us

Product Detail

Product Tags

The plow side plate is a key component installed on the side of the plowshare and plow wall, and its main functions include:

1、Balancing Lateral Pressure: During tillage, the soil is lifted and turned by the plowshare, generating enormous lateral pressure. The plowside plates, through their side contact with the furrow walls, effectively resist and balance this pressure, ensuring stable plow movement and preventing lateral swaying.

2、Stable tillage depth: It works together with the plowshare to support the plow body, helping to maintain a constant and uniform tillage depth.

3、Guiding the plow body forward: As a guide device for the plow body in the furrows, it ensures that the plow travels in a straight line, the tilling is straight, and avoids over-tillage or missed tillage.

4、Protecting the main plow body: As a wear part, it protects the more expensive plowshare and plowshare. When it wears out, only the plowshare side plate needs to be replaced, which is economical and convenient.

It has a long, rectangular, plate-like structure with a mounting surface on one side that conforms to the curved surface of the plowshare.

The bottom front end is typically designed with a replaceable plowshare heel, which is the point of most severe wear and can be replaced individually to further reduce costs.

Standardized bolt mounting holes are provided for easy and quick installation and replacement.

Exceptional wear resistance: Utilizing high-quality steel and heat treatment processes, significantly extending service life under harsh working conditions.

High strength and stability: Ensures smooth tillage and improves work quality.

Precise compatibility: Manufactured strictly according to original equipment manufacturer (OEM) specifications, perfectly compatible with major domestic and international brand plows (such as John Deere, Case, Maschio, and major domestic agricultural machinery manufacturers).
