Plow shovel 3363710 3363711 Tillage plow accessories Deep tillage shovel

Short Description:

Agricultural machinery accessories, plow blades 3363710 and 3363711, are wear parts specifically designed for agricultural tillage machinery. These products are forged from high-quality 65Mn high-manganese steel or 60Si2Mn spring steel, and after heat treatment, their hardness reaches HRC 38-45, exhibiting extremely high wear resistance and toughness. They are mainly used for plowing or cultivating, effectively chopping soil, burying weeds, and have good soil penetration. The surface is usually painted or powder-coated to enhance corrosion resistance, and they are suitable for tractor-mounted moldboard plows, reversible plows, and cultivators.

Send email to us

Product Detail

Product Tags

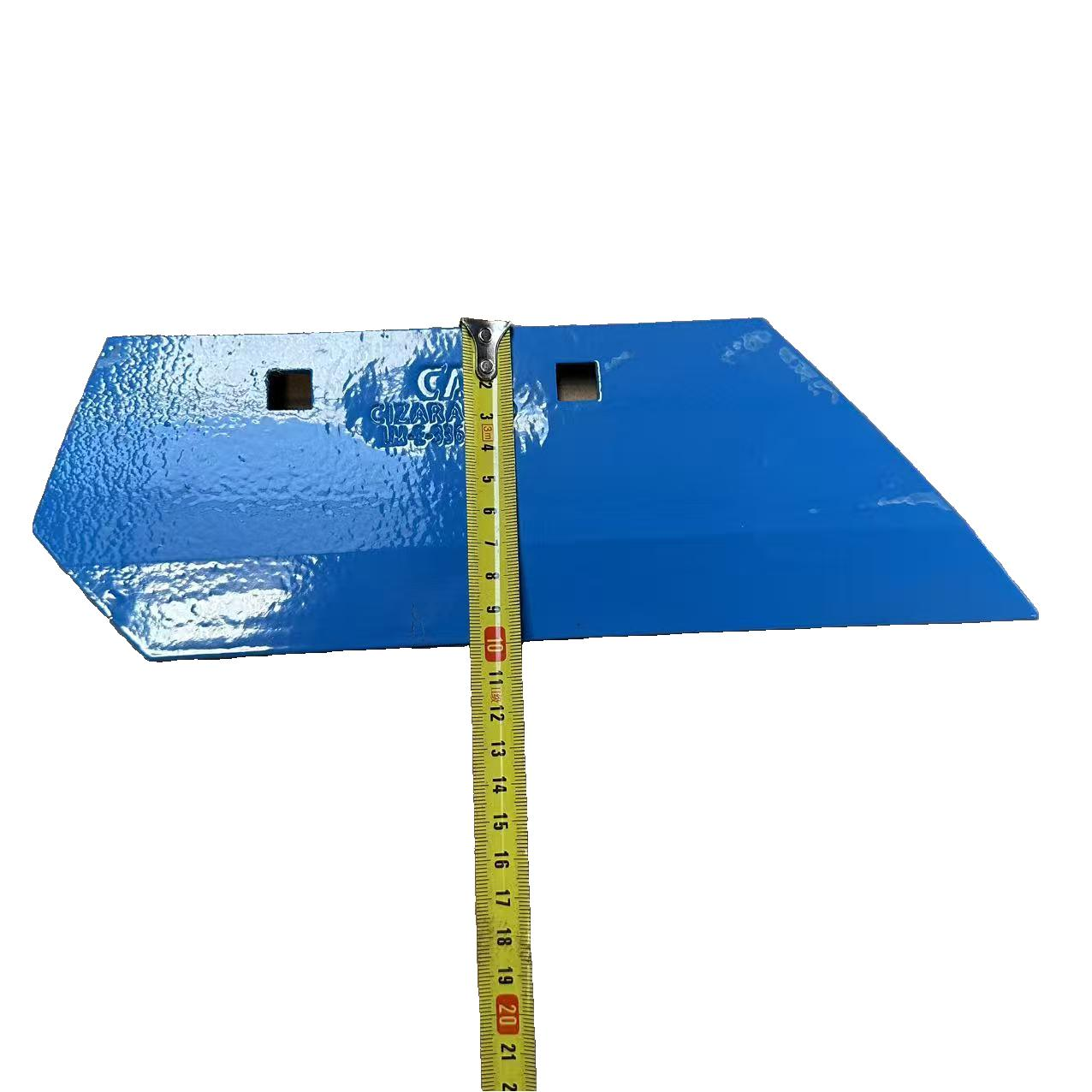

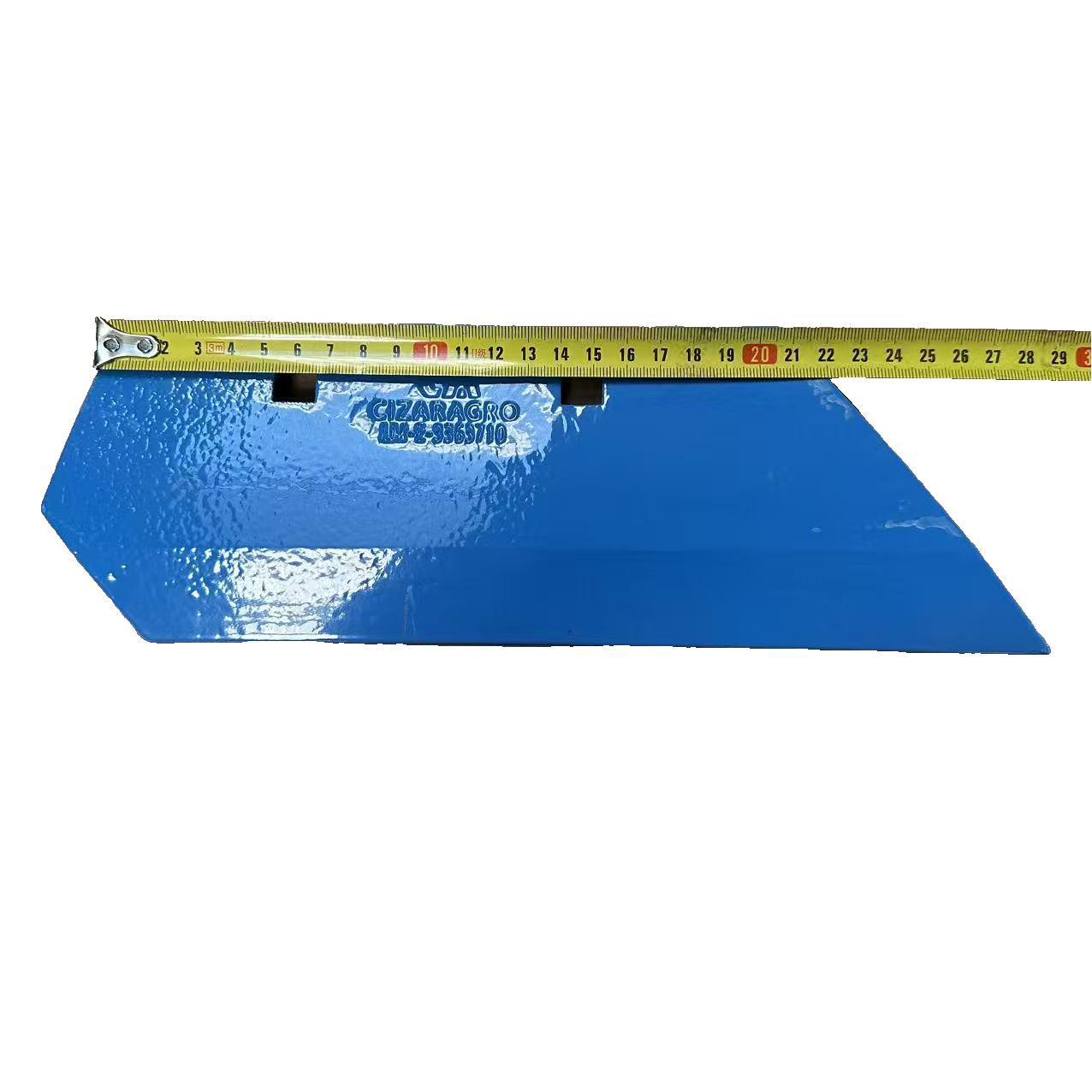

Models 3363710 and 3363711 plowshares are core components of high-end tillage machinery designed specifically for modern agricultural production. They are widely applicable to hydraulic reversible plows, moldboard plows, and power-driven harrows. As key components that directly contact the soil and are responsible for cutting clods and turning the soil, these two plowshares are designed with different soil conditions in mind, aiming to provide users with efficient, durable, and economical tillage solutions.

To cope with the high-intensity, high-wear field working environment, both the 3363710 and 3363711 plow blades are made of high-quality alloy steel. Common original equipment manufacturer (OEM) and accessory materials include 65Mn manganese steel, 60Si2Mn spring steel, or 30MnB5 heat-treated alloys. In terms of manufacturing process, the products are formed in one piece using advanced die forging technology, ensuring the integrity of the metal flow lines and eliminating internal porosity, thereby significantly improving structural strength.

Furthermore, the products undergo rigorous multi-stage quenching and tempering heat treatment processes, and high-frequency quenching is performed on key working surfaces, achieving a surface hardness of HRC 38-50, forming a "hard on the outside, tough on the inside" characteristic. This ensures excellent wear resistance and good impact resistance, effectively preventing breakage when encountering hard objects such as stones.

Superior Soil Engagement: The plow blade features an optimized curved geometry design with a sharp tip and a vertical angled entry point, significantly reducing traction resistance during tillage. This allows the tractor to quickly engage the soil under light loads, saving fuel.

Stable and Reliable Structure: Unlike ordinary plow blades, the 3363710 and 3363711 feature a unique positioning shoulder at the mounting point. This not only simplifies installation but also ensures a compact and stable structure when combined with the plowshare, plowshare, and other components, eliminating operational sway and extending the overall machine lifespan.

Users are advised to regularly check the wear of the plow blades during use. If the wear width of the working surface increases or the soil penetration performance significantly decreases, the plow blade should be replaced promptly to ensure consistent tillage depth and work quality. Due to their high-strength material properties, these two plow blades can still provide 300-400 hours of stable working time, even in harsh terrain with abundant gravel.
