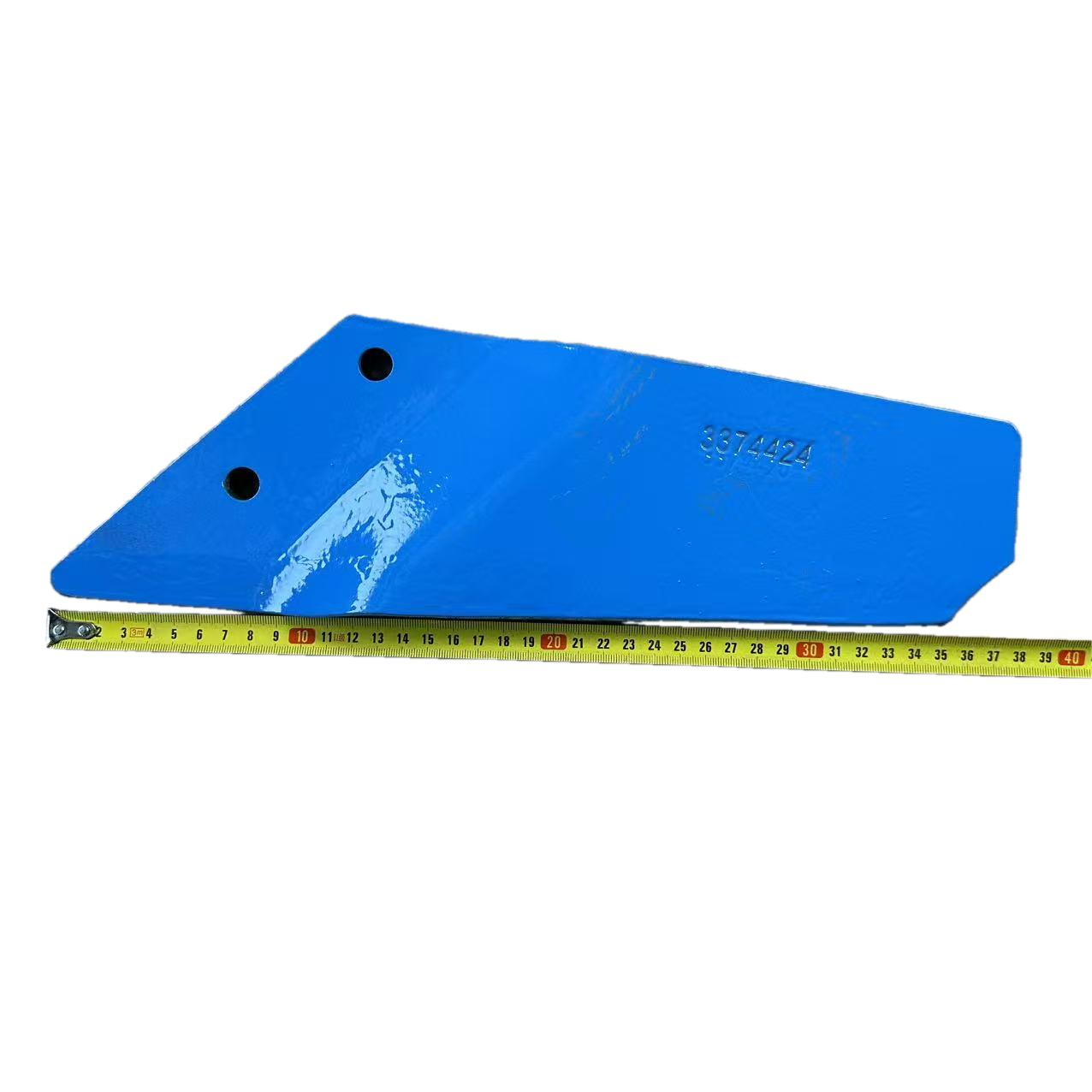

Lemken Smaragd Stubble Cultivator Hard Metal Replacement Wing / Point (Right Side) – Part No. 3374424
These two parts are replacement wing tips designed specifically for Lemken's Smaragd (Emerald) series stubble harrows. These types of parts are typically installed at the bottom of the tillage implement, in direct contact with the soil and crop residue, and therefore feature a high-strength design to withstand severe wear.
| Material/type |
weight
|
Thickness | Width | Bolt hole diameter | Hole spacing |
| Hard metal | 3.55 kg | 15 mm | 480 mm | 12.5 mm | 70 mm |
Part correspondence:
3374424: Usually the right wing panel.3374425: Usually the left wing panel.
Compatible Models: Primarily compatible with Lemken Smaragd series stubble harrows. Additionally, information indicates that this component is also compatible with certain models from other brands, such as the Amazone Pegasus series and specific equipment from Kongskilde and Howard, demonstrating a degree of cross-brand compatibility.
Symmetrical Design: Part numbers 3374424 and 3374425 are mirror images of each other, used on the left and right sides of the equipment respectively, ensuring the balance of the implement during operation and the effectiveness of soil coverage.
Abrasion Resistance: As the tip of the stubble harrow, this component has a hard metal surface treatment, effectively resisting the impact and abrasion of hard stubble from crops such as corn and wheat, extending the service life of the tillage components and reducing the frequency of downtime for replacement when operating in rocky or hard soil conditions.
