LEMKEN – 4128170 – 60X25X900
This product is specifically designed for harsh agricultural conditions and features the following key characteristics:
High-quality steel: The spring teeth are made of high-quality 60Si2MnA silicon-manganese spring steel or 65Mn high-carbon spring steel. These materials possess excellent elastic limit and fatigue resistance, ensuring that permanent deformation or fracture will not occur under enormous impact loads and frequent reciprocating motion.
Precision manufacturing process: After being precisely rolled and shaped, the product undergoes a quenching and tempering heat treatment process to ensure a uniform internal structure and achieve stable and excellent mechanical properties. The surface is treated with blackening, electroplating, or phosphating, providing good rust and corrosion resistance, and enabling it to adapt to various complex soil environments (including damp or corrosive sites).

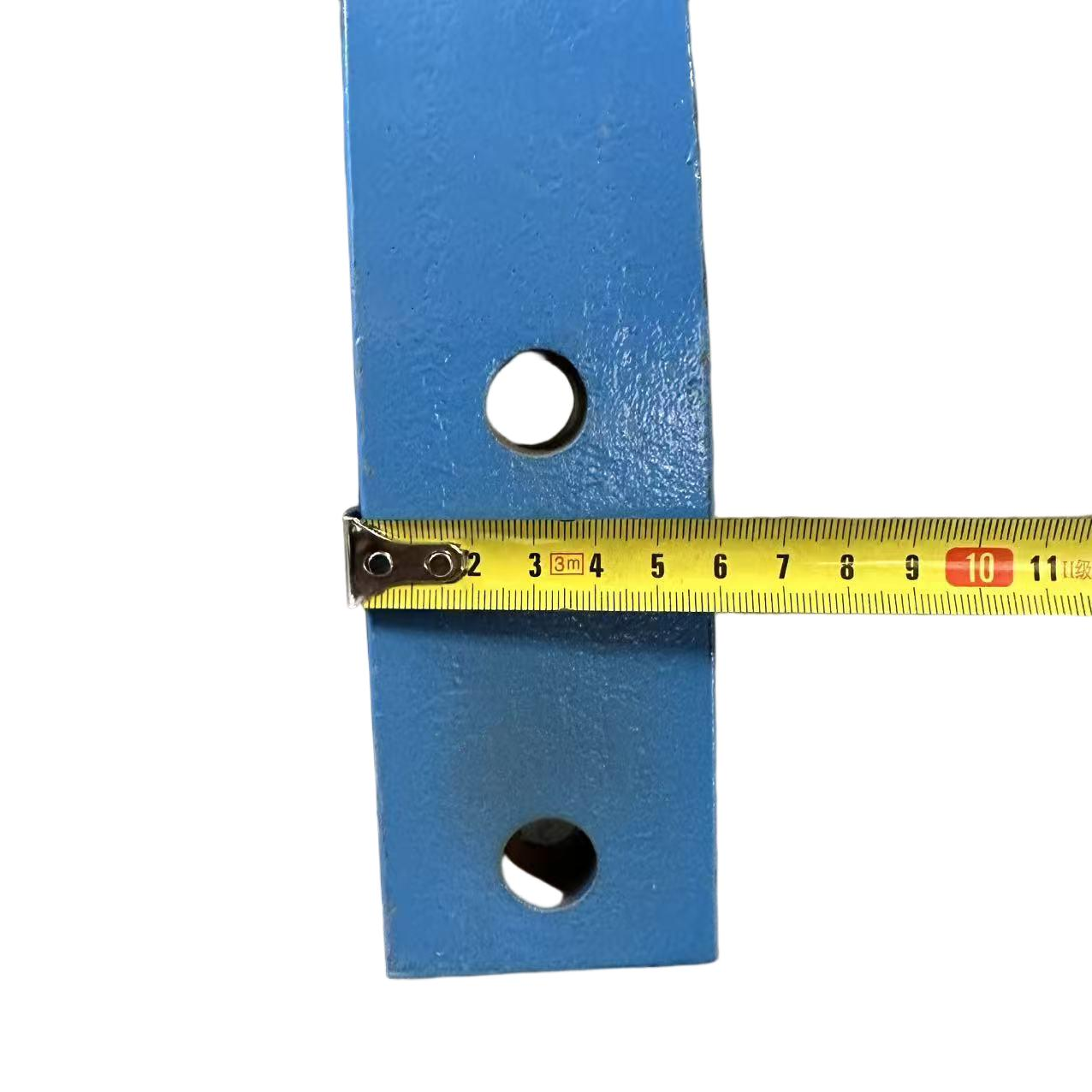

Precise Fit: As a genuine or high-standard replacement part from LEMKEN, this spring tooth is designed strictly according to the original drawings. Its 60mm width, 25mm thickness, and 900mm length ensure that the mounting hole positions and spring force values are completely consistent with the original equipment, achieving seamless replacement and avoiding operational failures caused by dimensional deviations.
Highly efficient soil loosening: Its S-shaped or similar elastic structure effectively penetrates hard soil, breaks up compacted clods, increases soil porosity, and promotes the absorption of water and nutrients by crop roots.
Equipment protection: When encountering hard objects such as rocks or tree roots underground, the spring teeth automatically spring back to avoid them, protecting not only itself from damage but also preventing damage to main equipment (such as gearboxes and frames) from rigid impacts, significantly extending the service life of the agricultural machinery.
Multifunctional operation: This component is widely used in various operational scenarios such as deep tillage, seedbed preparation, stubble removal, and weeding. It can not only improve soil but also perform inter-row weeding and ground cleaning in orchards and vineyards, making it a powerful tool for improving efficiency and reducing labor costs in modern agriculture.
When installing this spring tooth, it is recommended to strictly follow LEMKEN's assembly specifications and avoid using pneumatic tools to directly tighten the bolts, as this may cause stress cracks at the root of the spring tooth due to excessive instantaneous impact force, thus affecting its service life.
