High-strength wear-resistant plowshare tip 063090

Short Description:

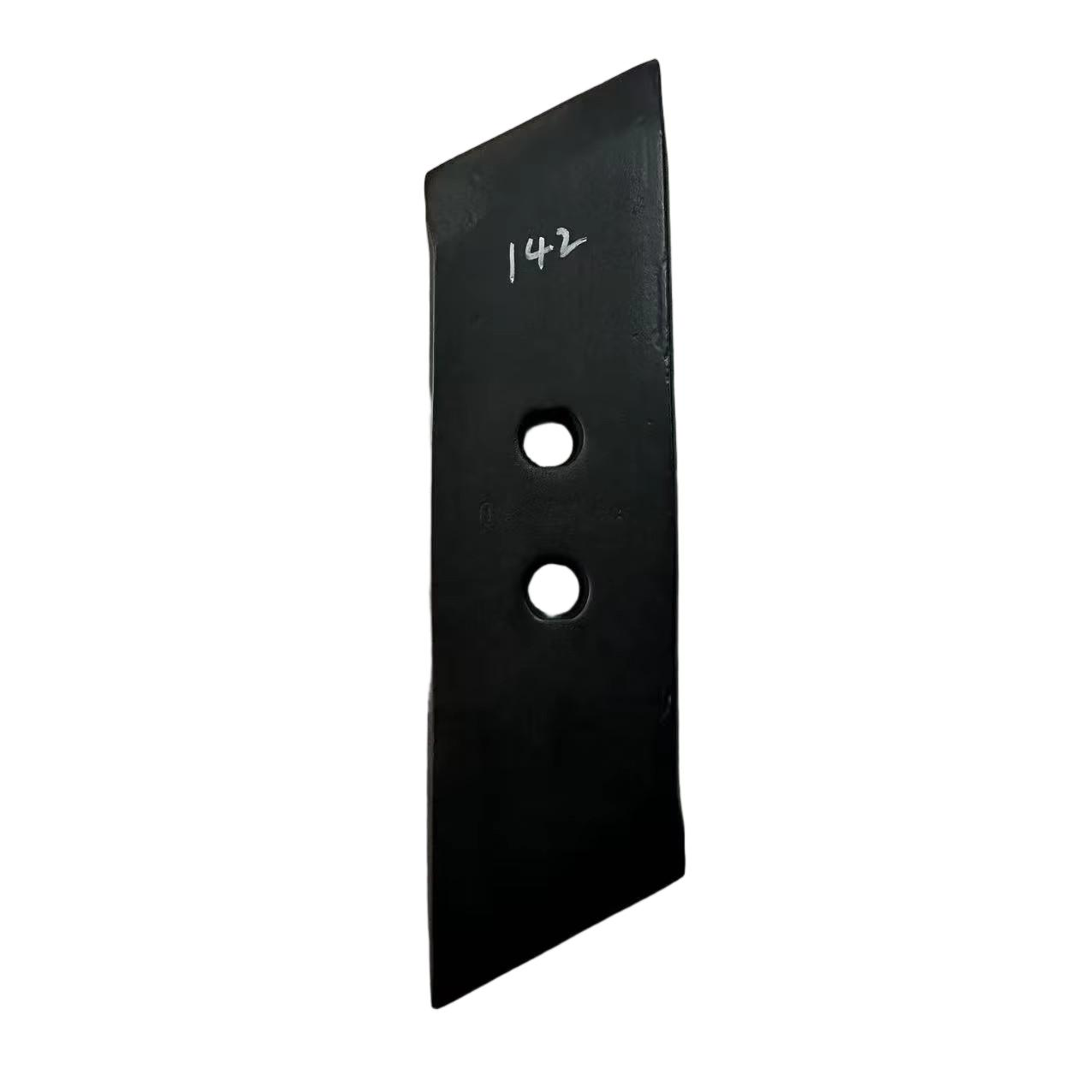

The 063090 plow tip, an agricultural machinery accessory, is a key wear-resistant blade tip compatible with plows from brands such as Kverneland. This component is typically used in conjunction with the plowstock and is made of high-quality boron steel such as 30MnB5 or 65Mn, heat-treated to a hardness of HRC50±3, combining high strength with excellent resistance to abrasive wear. Its flat, round chisel-shaped design reduces working resistance and provides excellent soil penetration, effectively loosening soil to a depth of 25-45cm, significantly reducing replacement frequency and operating costs.

Send email to us

Product Detail

Product Tags

High-performance materials: The product is made of high-quality boron steel (such as 30MnB5 and 38MnCrB5), and undergoes a special heat treatment process to control the hardness at HRC 50±3, significantly enhancing its wear resistance and impact resistance.

Significantly extended lifespan: According to manufacturer tests, the lifespan of this plowshare is more than 30% longer than traditional products, effectively reducing the frequency of replacement and maintenance costs during cultivation.

Working conditions adaptability: Suitable for operation at depths of 25cm to 45cm below the soil surface, with a recommended operating speed of 3.0-5.0 km/h. Its optimized structural design performs well in soil breaking, turning, and improving soil aeration.

The 063090 plow tip is typically used with deep tillage machines from well-known brands such as LEMKEN and Kverneland, and is a core working component of the deep tillage shovel assembly. To cope with the severe abrasion of metal components by sand, gravel, and crop stubble in the soil, this model generally uses high-strength boron steel such as 30MnB5 or 38MnCrB5 as the base material. Through "wear-resistant welding" and a special heat treatment process, its surface hardness can reach HRC 50±3, maintaining the sharpness of the shovel tip while significantly delaying failure caused by hard abrasive wear.

In terms of geometry, the 063090 plow tip exhibits a typical flat, rounded chisel-shaped profile. This design differs from the wide, winged shovels or double-winged shovels; its blade width is similar to the shovel post, resulting in less resistance to soil penetration. During operation, it can penetrate 25cm to 45cm below the surface, effectively breaking up the plow pan without disrupting the soil structure. The rounded ridge on its back enhances its soil-breaking ability and provides a certain degree of soil-turning effect, helping to improve soil permeability and water retention, creating a favorable environment for crop root growth.
