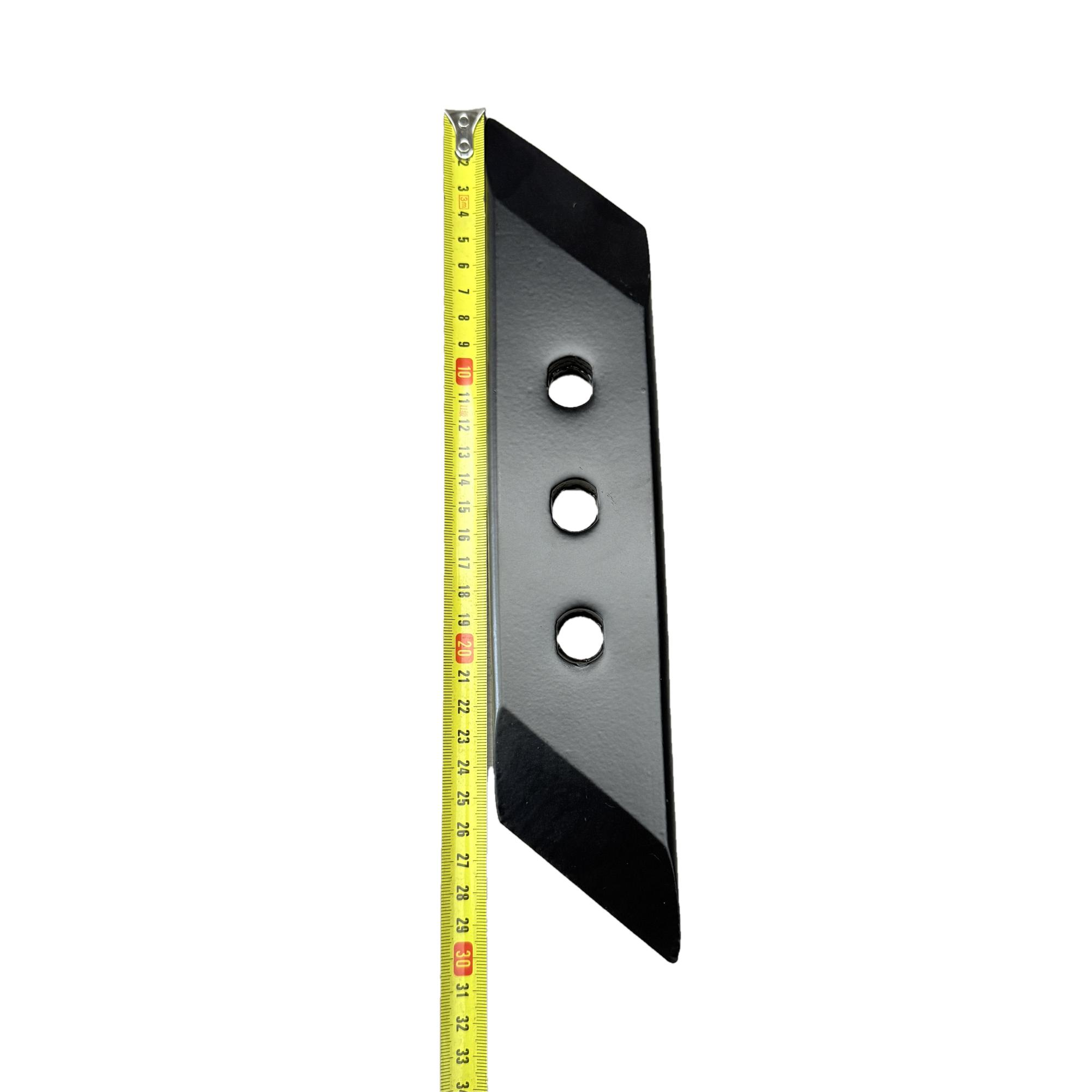

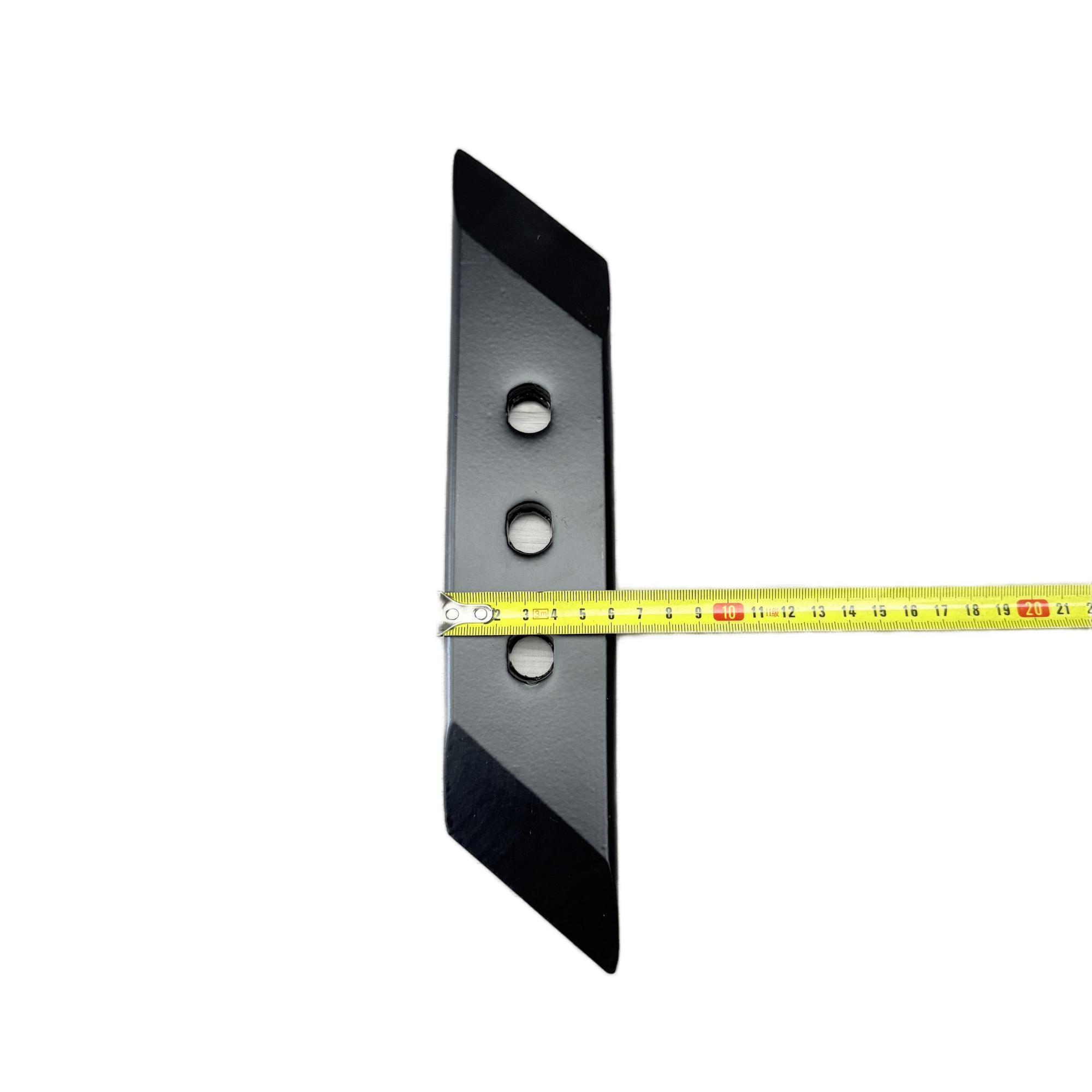

Double headed reversible plow tip 173332 173331 agricultural machinery wear-resistant parts manganese steel plow shovel head
The 173332 and 173331 double headed plow tips are the core vulnerable components in modern agricultural tillage machinery, designed specifically for high-strength and high-efficiency plowing operations. Both models adopt a reversible double headed symmetrical structure, breaking through the limitations of the short lifespan of traditional single headed plows, aiming to reduce operating costs for users and improve land cultivation efficiency
1、Reversible design with double service life
The biggest highlight of these two plow tips is their unique dual head interchangeable design. When the tip of one side of the plow becomes dull due to friction during operation, simply disassemble and turn the direction to continue using the new cutting edge on the other side. This design means that compared to the standard single headed plow tip, 173332 and 173331 provide twice the working life, reducing spare parts inventory and significantly shortening valuable agricultural time wasted due to downtime for replacement parts.
2、Partition heat treatment and enhanced wear resistance
In order to cope with the high-intensity wear of plow tips caused by dry or heavy soil, these two products have been strictly controlled in terms of material and heat treatment process:
Material selection: The main body is made of high-strength alloy materials such as 65Mn or boron steel, ensuring the toughness and impact resistance of the substrate.
Partition heat treatment: Drawing on advanced manufacturing processes, the surface of the plow tip (in contact with the soil) is quenched to achieve a hardness of HRC 45-57, demonstrating excellent resistance to abrasive wear; The area around the bolt installation hole maintains good toughness to avoid brittle fracture when impacted by stones.
Hardened layer: Some high-end processes also involve welding hard alloy on the cutting edge to increase the hardness to HRC 60 or above, greatly enhancing the wear resistance in sandy soil
4、Smooth soil flow and adaptability
Streamlined surface: The plow tip body adopts an arc-shaped design, which can effectively reduce traction resistance, allowing the soil to smoothly rise and flip along the plow wall, thereby reducing the fuel consumption of the tractor and improving operational efficiency.
Wide compatibility: Models 173332 and 173331 are high-quality replacement parts that are widely used in mainstream hydraulic flip plows (such as Glan, Reken, and other brands) and chisel type deep plows on the market. The surface of the product is usually treated with spray paint or rust prevention to adapt to outdoor storage environments
