Agricultural machinery plow tip 34060850

Short Description:

The double-ended plow point (part number: 173332/173331) is forged from high-strength, wear-resistant steel and undergoes a special heat treatment process for exceptional hardness and toughness. Its symmetrical design allows for interchangeable use if one end becomes worn, significantly extending its service life and reducing replacement frequency and cost. Suitable for deep plowing and tillage operations in a variety of soil conditions, it’s easy to install and effectively improves agricultural machinery efficiency and economical performance.

Send email to us

Product Detail

Product Tags

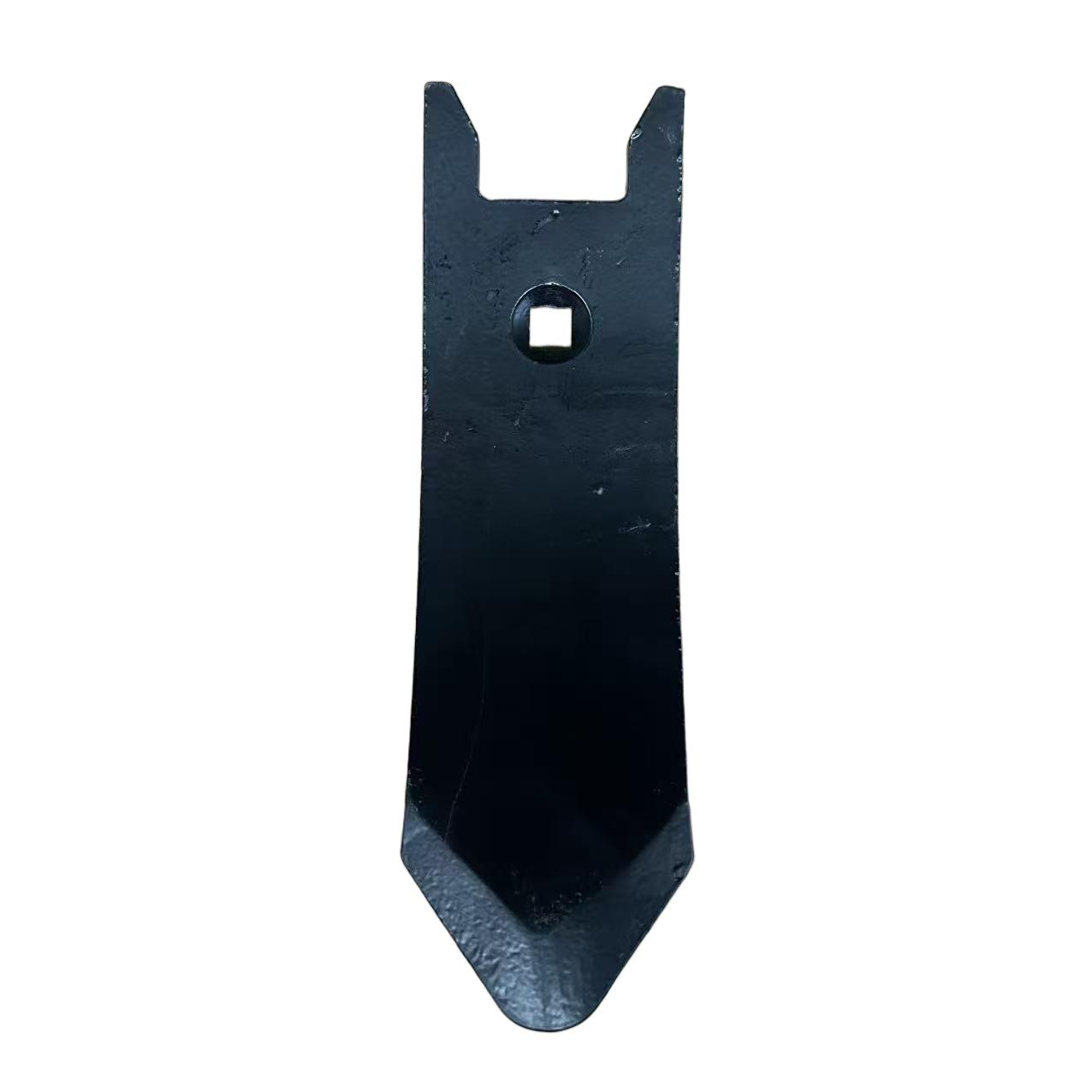

The double-ended plow point is an innovative plowing component that integrates two sharp plow points into a single casting. When one plow point becomes dull due to wear, the user can simply remove it from the plow column, flip it 180 degrees, and reattach it to continue working with the other, sharp plow point. This design effectively doubles the service life of a single component.

1、Core Advantage: One part, twice use. Compared to traditional one-piece plow tips, it reduces replacement frequency, lowering users' parts procurement costs and inventory pressure, while also reducing time lost due to downtime for replacement.

2、Improved Work Efficiency:When a plow tip becomes worn, increasing tillage resistance and fuel consumption, there's no need to wait for a replacement part. A quick on-site flip restores the plow to peak performance, maintaining consistent tillage depth and soil fragmentation, ensuring operational efficiency.

3、Convenient and labor-saving design:Replacing the components is simple. Typically, it requires only removing the securing bolt or pin, flipping it over, and re-tightening it, significantly reducing the effort and time required for maintenance.

4、Strong Versatility:This model (173332/173331) is a proven universal model that can be used with a variety of moldboard plow brands and models (especially the main plow body).

5、Made of High-Quality Materials:Usually precision-cast from high-strength manganese steel (65Mn) or alloy steel, these steels undergo a specialized heat treatment process (such as quenching and tempering) to achieve high hardness, high wear resistance, and sufficient toughness to withstand the intense impact and wear experienced during farming operations, ensuring exceptional durability.
