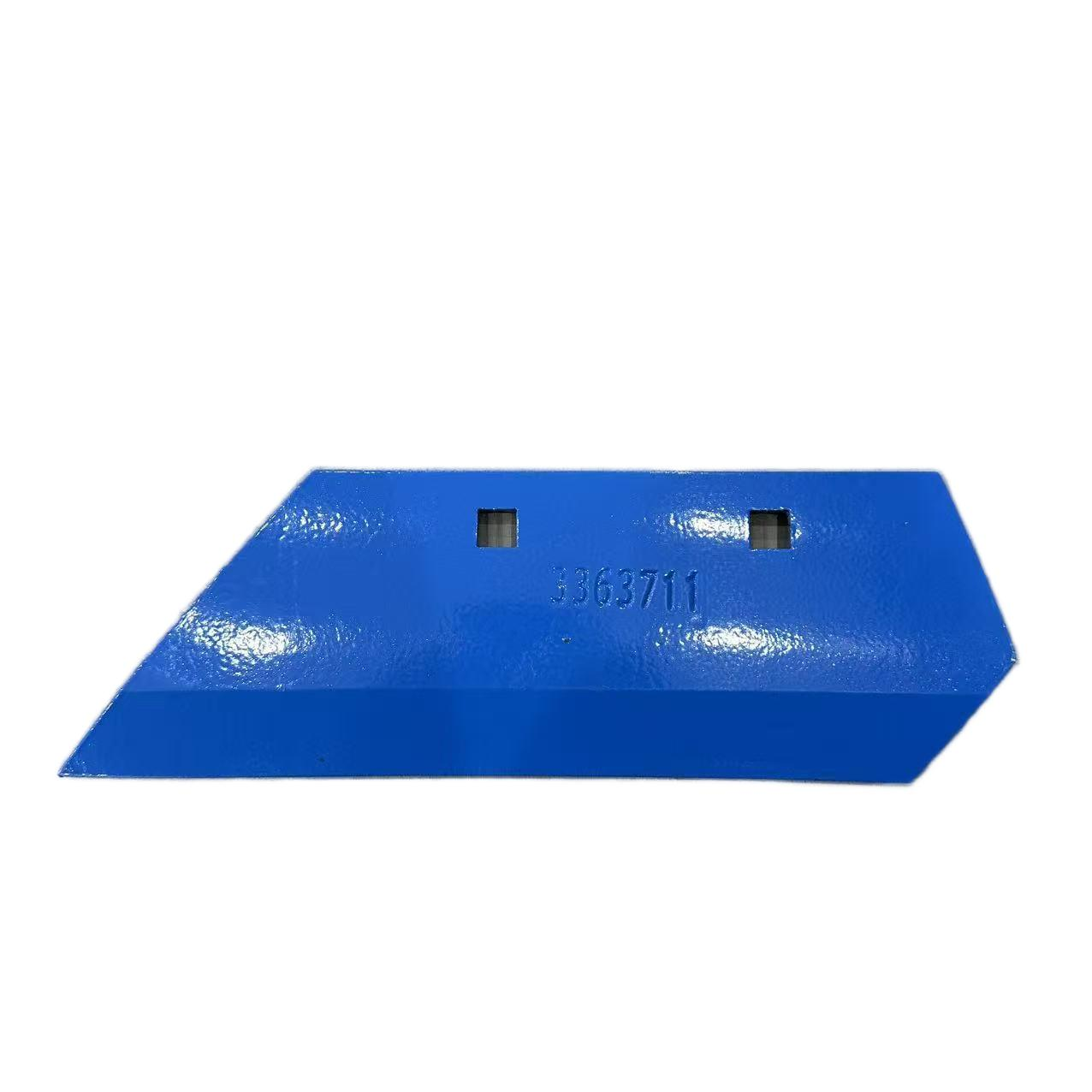

Agricultural machinery plow shovel accessories 3363711 wear-resistant plowing shovel pieces
3363711 plow shovel is a high-strength and vulnerable component designed specifically for dryland cultivation. As the core soil contact component of land preparation machinery, it directly undertakes the tasks of soil entry, cutting, and turning. This model is manufactured using precision cutting technology and strictly follows the original OE specifications. It is suitable for supporting large tractors with over 200 horsepower and semi suspended hydraulic flip plows, ensuring excellent operational energy efficiency even in heavy soil and rocky plots.
Boron steel substrate: The main body is made of high-performance wear-resistant boron steel (such as 30MnB5 or equivalent imported materials), and after heat treatment, the hardness reaches HRC 48-52, significantly improving the bending and fracture resistance while maintaining the sharpness of the cutting edge.
Heat treatment process: Oil quenching+low-temperature tempering process is adopted to form a high hardness wear-resistant layer on the surface of the plow shovel, while the core retains good toughness, effectively avoiding blade breakage or fracture caused by soil impact.
Dimensions: Strictly follow the original factory drawings, with precise installation hole spacing, and can be quickly replaced without the need for secondary hole expansion.
Compatible models: plow body assembly compatible with Reken, Besson, Gran, Kuhn, and mainstream hydraulic flipping plows in China.
Homework parameters: The plowing depth can reach 25-35cm, and the width of the single shovel can be adjusted. It is suitable for deep plowing operations after root treatment of crops such as corn and wheat, as well as straw mulching and returning to the field.
High wear resistance: The optimized alloy formula extends its service life in sandy soil by more than 30% compared to ordinary 65Mn plows.
Reduce energy consumption: The streamlined surface design effectively reduces soil adhesion, lowers tractor travel resistance, and has shown significant fuel saving effects in actual tests.
Economic convenience: As a quick change component, standardized design allows for replacement without the need for professional tools, which can be completed by a single person, minimizing downtime in the field.
Soil types: sandy loam, black clay, light saline alkali land, and land with a small amount of gravel.
Agronomy requirements: Suitable for deep plowing in autumn, sun drying in spring, and green manure tillage operations.
