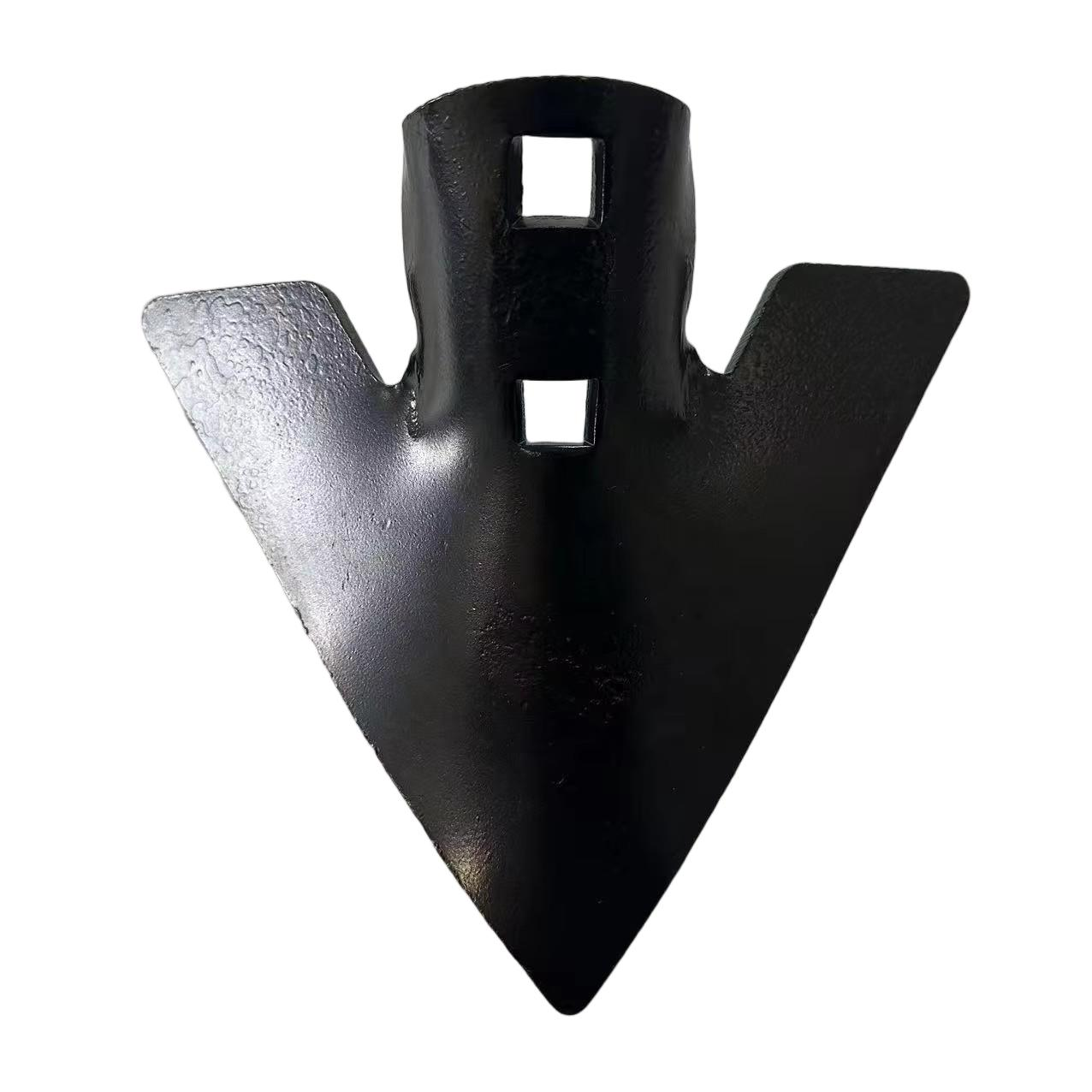

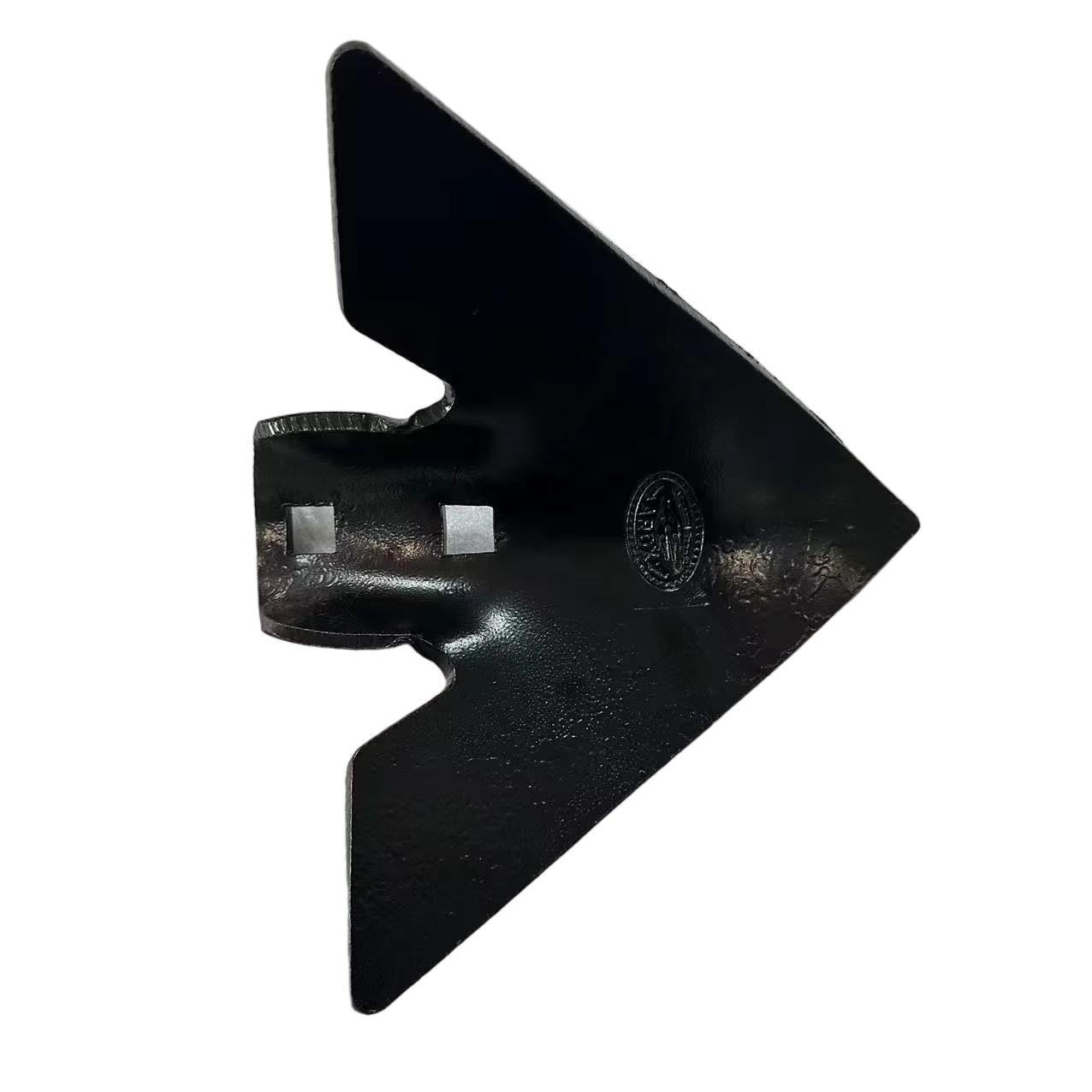

Agricultural machinery parts, tiller shovel, 65Mn forging
Plow blades are high-precision, wear-resistant agricultural machinery parts specifically designed for modern agricultural production. They are suitable for large, medium, and small moldboard plows and reversible plows. As a core soil-contact component that directly contacts the soil, it directly determines the depth of tillage, the soil turning effect, and the tractor's fuel economy. We use high-quality high-manganese steel or 65Mn spring steel, combined with precision forging and heat treatment processes, to ensure that each plow blade possesses extremely high hardness, excellent wear resistance, and good impact toughness, making it the ideal choice for deep tillage and straw return operations.
High manganese alloy steel with customized ratios will rapidly harden on the surface under severe impact or high contact stress, forming an extremely hard wear-resistant layer, while maintaining excellent toughness inside. This "hard on the outside and tough on the inside" characteristic increases the wear resistance life of plows and shovels by 30% -50% compared to ordinary products in harsh working conditions such as sand and gravel ground and compacted ground, effectively reducing downtime for frequent replacement of parts.
The soil penetration angle and shovel tip curve of the plow shovel have been optimized through CAE finite element analysis, and have excellent soil penetration ability. The sharp shovel tip can easily cut into the compacted layer, not only has good soil crushing effect and low tillage resistance, but also significantly reduces the tractor's traction load. The tested fuel saving effect can reach 5% -8%, helping you effectively reduce operating costs in large-scale tillage.
The product design features a unique self grinding blade structure. During the homework process, the parts of the plow and shovel that rub against the soil will continue to wear and tear, but due to the difference in material density and hardness between the front and rear parts, the plow and shovel can always maintain a sharp edge during operation, avoiding the phenomenon of "blunt blade" and ensuring consistent tillage depth and neat flipping of the soil.
Strictly following national standards (or ISO standards) for production, with precise installation hole spacing, suitable for the vast majority of plow body assemblies on the market. Before leaving the factory, strict quality inspection is carried out to ensure that there are no broken holes or burrs. The original parts can be directly replaced, achieving immediate installation and use without the need for secondary processing.
